Level 2 - Domain-Level (Solution) Architecture and Patterns

Return to home

This section shows how the Enterprise Data Platform Reference Architecture as well as standards are applied within individual domains to create solutions.


Why It Matters

Using common patterns and standards at the domain level keeps solutions consistent and compatible. This speeds up delivery, avoids rework, and ensures every solution contributes to and strengthens the overall enterprise “town plan.”



Table of Contents

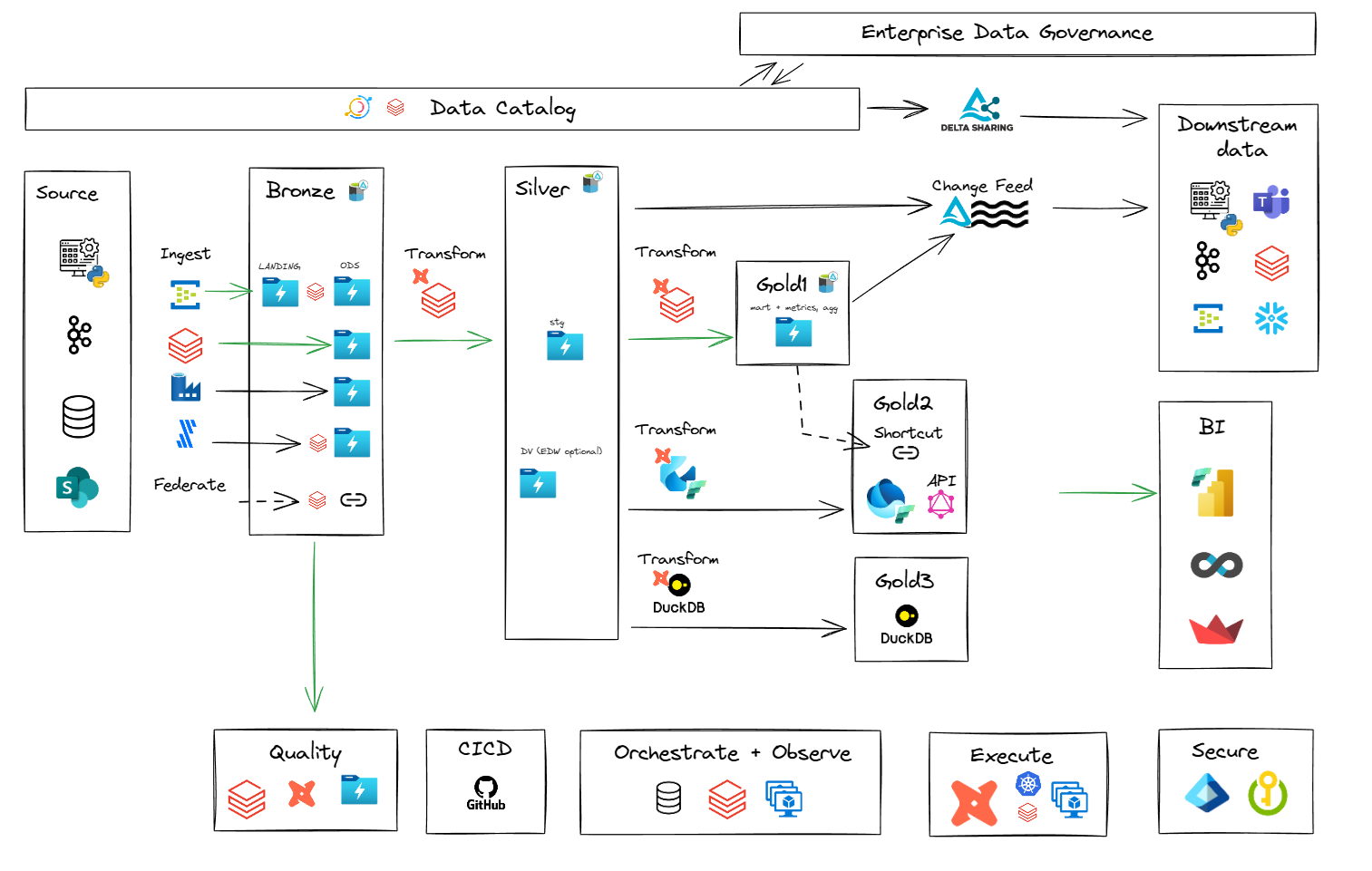

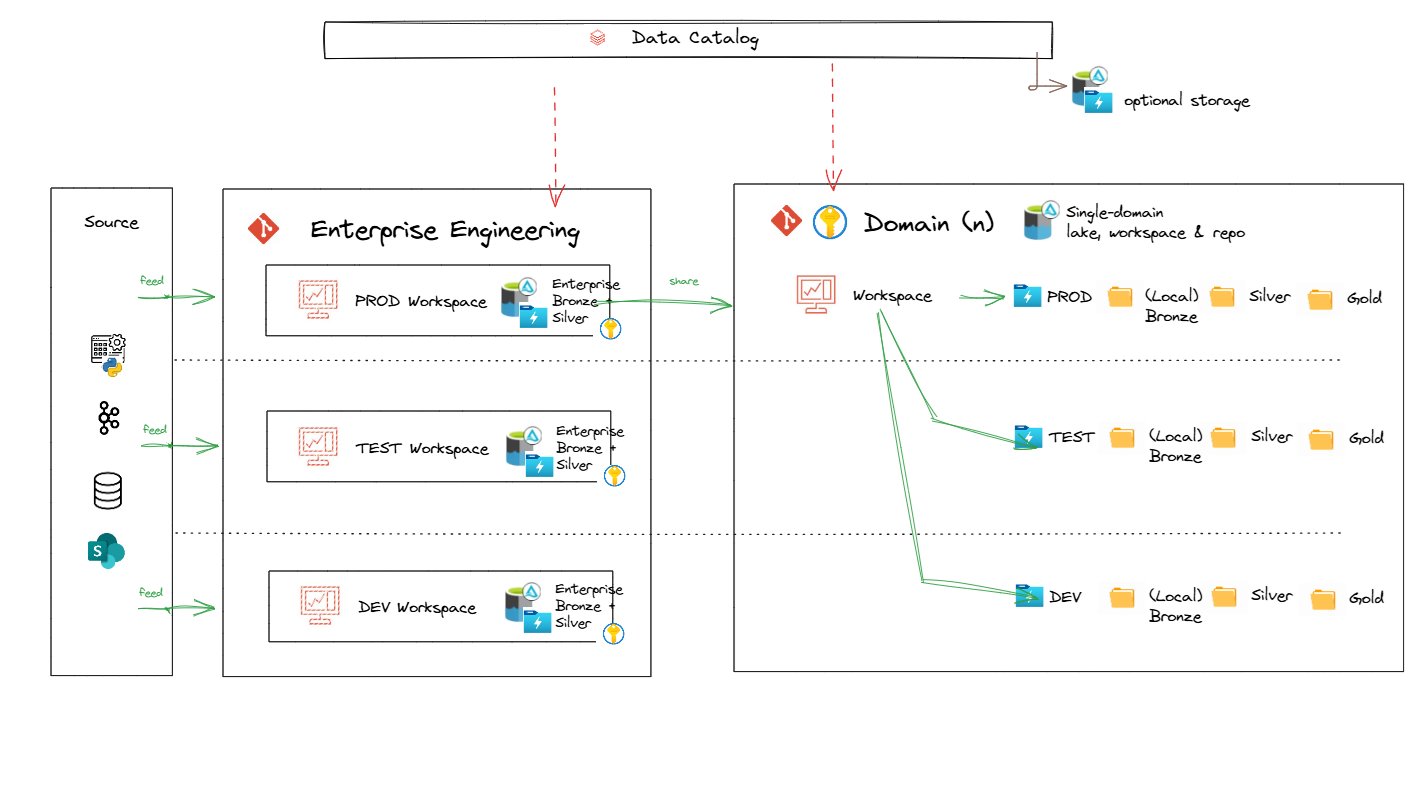

Example Platform and Pipeline Reference Architecture Platform and Pipeline Reference Architecture

Business architecture

Use cases and business requirements

Business requirements, use cases, and use case roadmaps together define what a solution must achieve, how it will be applied, and when capabilities will be delivered according to agreed priorities. These priorities may sit at the enterprise, domain level or both.

Understanding them is necessary to understand:

  • the outcomes the solution must enable or improve
  • the measures of success, constraints, and scope that shape design
  • how the solution will be used to meet specific business needs
  • the sequence and priority of delivering capabilities to maximise business value

Business processes

Business processes are the activities and tasks undertaken to achieve business goals. Understanding them allows the data architecture to uncover:

  • the context in which information is captured and used
  • key concepts and entities relevant to the domain or use case
  • relationships between processes and data
  • the basis for defining measures and metrics

Business glossary

A business glossary is a curated list of terms and definitions relevant to the business (at both the Enterprise and Domain levels). Understanding these terms and how they map across the organisation by stakeholders and systems is critical to consistent understanding and usage of concepts.

It is core part of Enterprise Metadata Architecture.

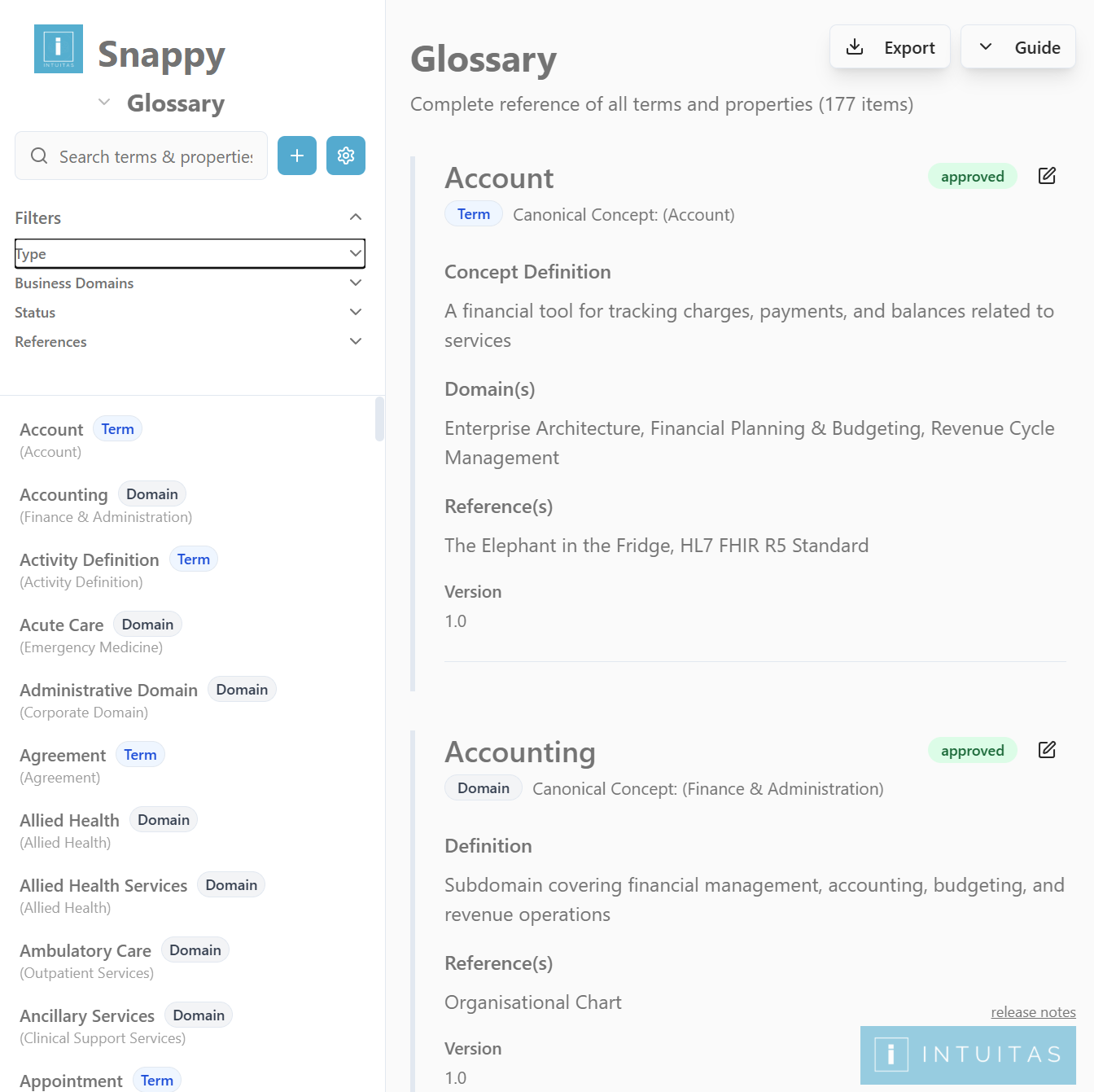

Example glossary from Intuitas' Glossary builder tool
Example glossary from Intuitas' Glossary builder tool

Contact us at 📧 office@intuitas.com to learn more about the tool.

Business metrics

Measures are raw, quantifiable values that capture facts about business activities (e.g., total sales, number of customers).

Metrics are calculated or derived indicators that assess the performance of business processes, often using one or more measures (e.g., sales growth rate, customer churn rate).

Both require capture, at a minimum, of:

  • name
  • definition
  • formula (with reference to concepts and terms as defined in the business glossary)
  • associated dimensions
  • source(s)
  • metric owner
  • frequency



Data Architecture

Data Architecture defines how data is structured, stored, and accessed. It spans storage design, data models, integration, and governance to ensure trusted, reusable, and consistent data.

Data and information models

  • Conceptual Models – capture high-level business concepts and rules in plain language, creating a shared understanding between business and IT.
  • Logical Models – refine concepts into entities, attributes, and relationships, ensuring clarity and consistency across domains while remaining technology-agnostic.
  • Physical Models – implement the design in databases and systems, optimised for performance, scalability, and integration.

Domain-level models often align more closely to real-world business semantics and rules than the enterprise-wide model. While they may not map one-to-one with enterprise or other domain models, cross-mapping is essential to identify dependencies, ensure conformance (e.g., shared dimensions, master data), and support integration across the organisation.

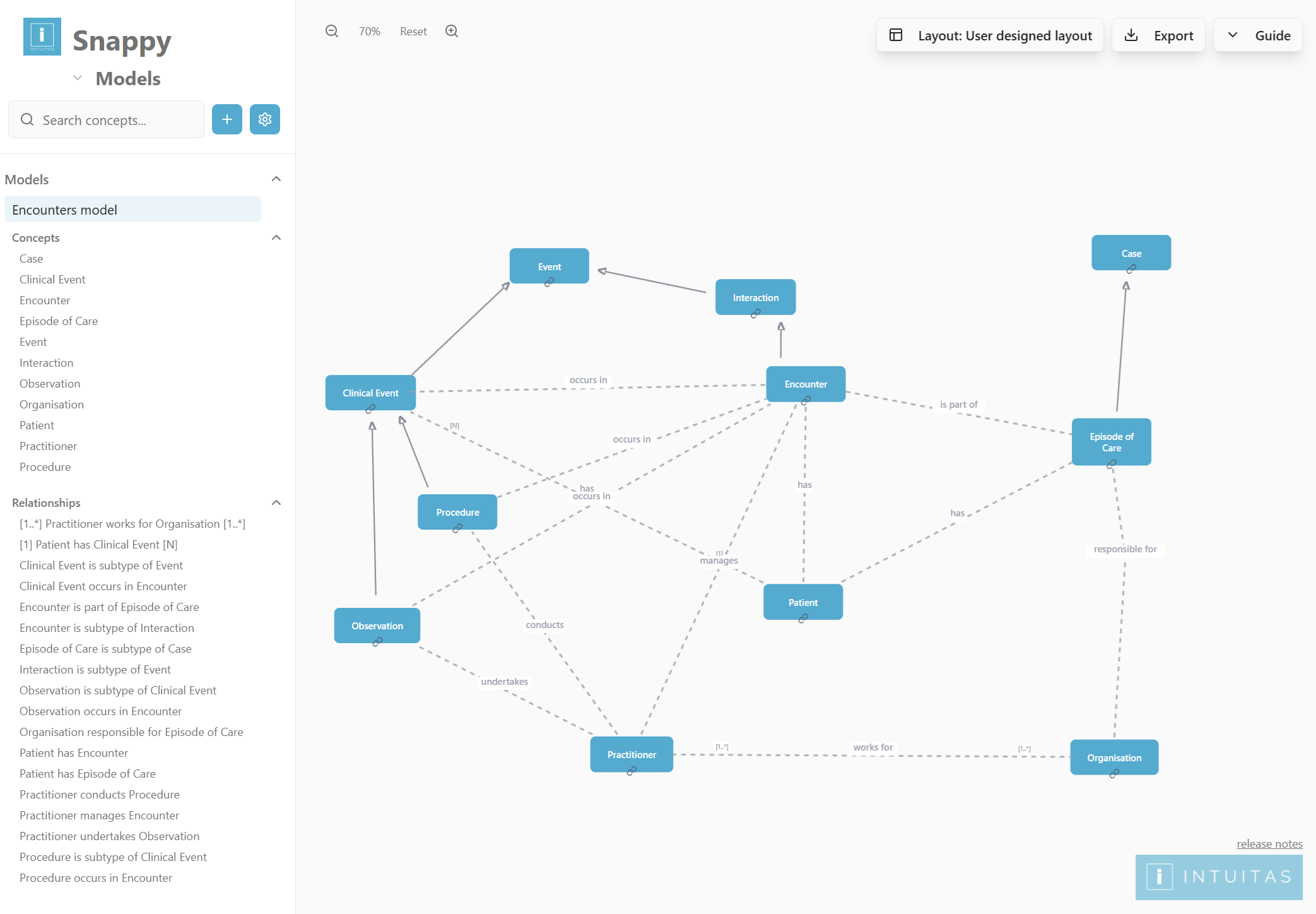

Example of modelling a Domain-scoped Conceptual Information Model
Example of modelling a Domain-scoped Conceptual Information Model

See Bounded context

Domain glossary

The Domain Glossary complements the Domain Model by describing concepts in clear business language. It defines domain-specific terms, synonyms, and the context in which they are used, along with properties such as attributes, keys, measures, and metrics.

A well-curated Domain Glossary:

  • Ensures clarity, reduces ambiguity, and strengthens alignment between business understanding and technical implementation.
  • Builds on the Enterprise Glossary: Extend the enterprise glossary with domain-specific definitions.
  • References when aligned: Where a domain term is synonymous with an enterprise definition, the enterprise glossary should be referenced rather than duplicated.
  • Resolves when conflicting: Where definitions diverge or conflict, governance processes must be applied to reconcile differences and ensure consistency.

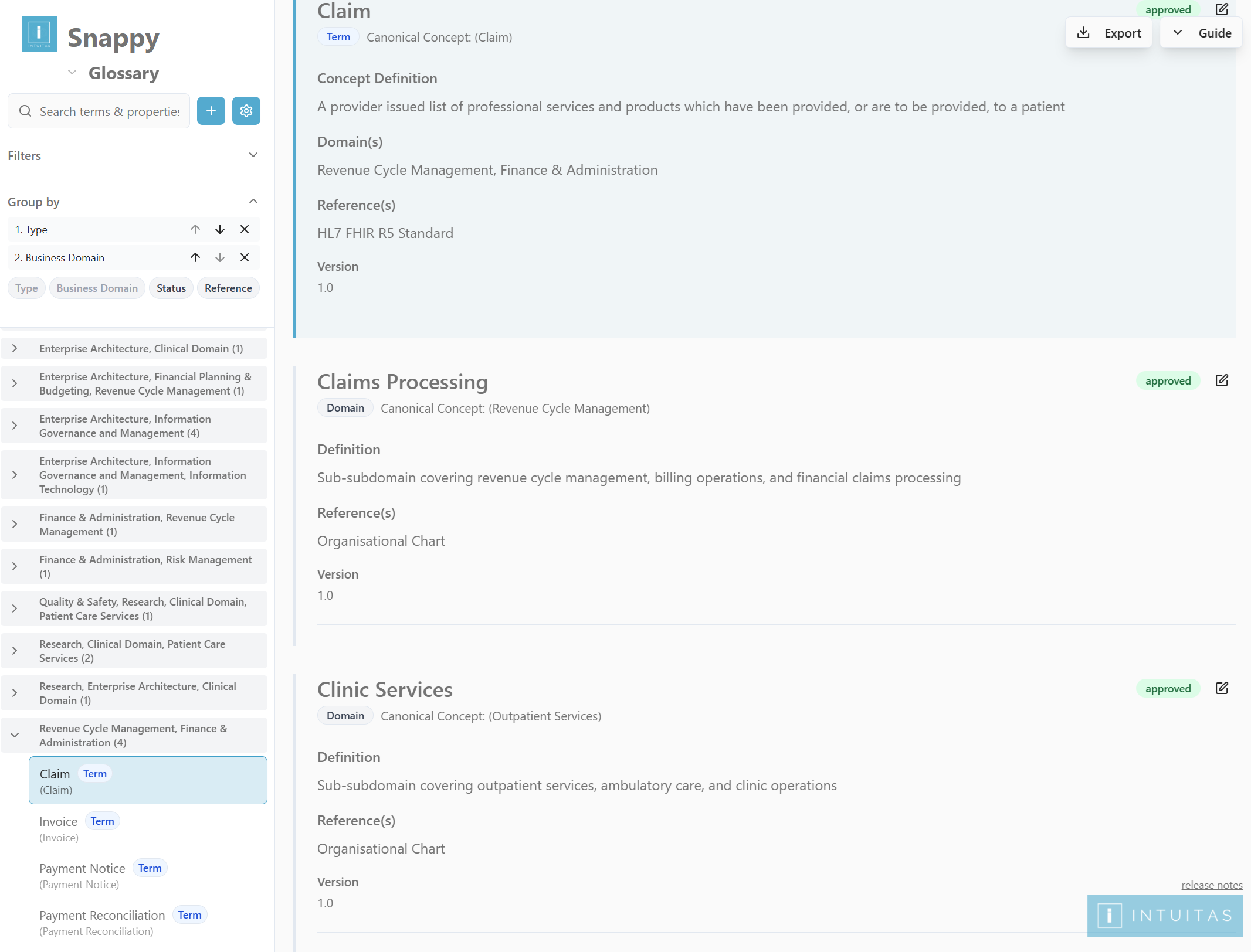

Example of authoring a Domain-scoped Glossary aligned to the CIM and Enterprise Glossary
Example of a Domain-scoped Glossary mapped to an Enterprise Glossary

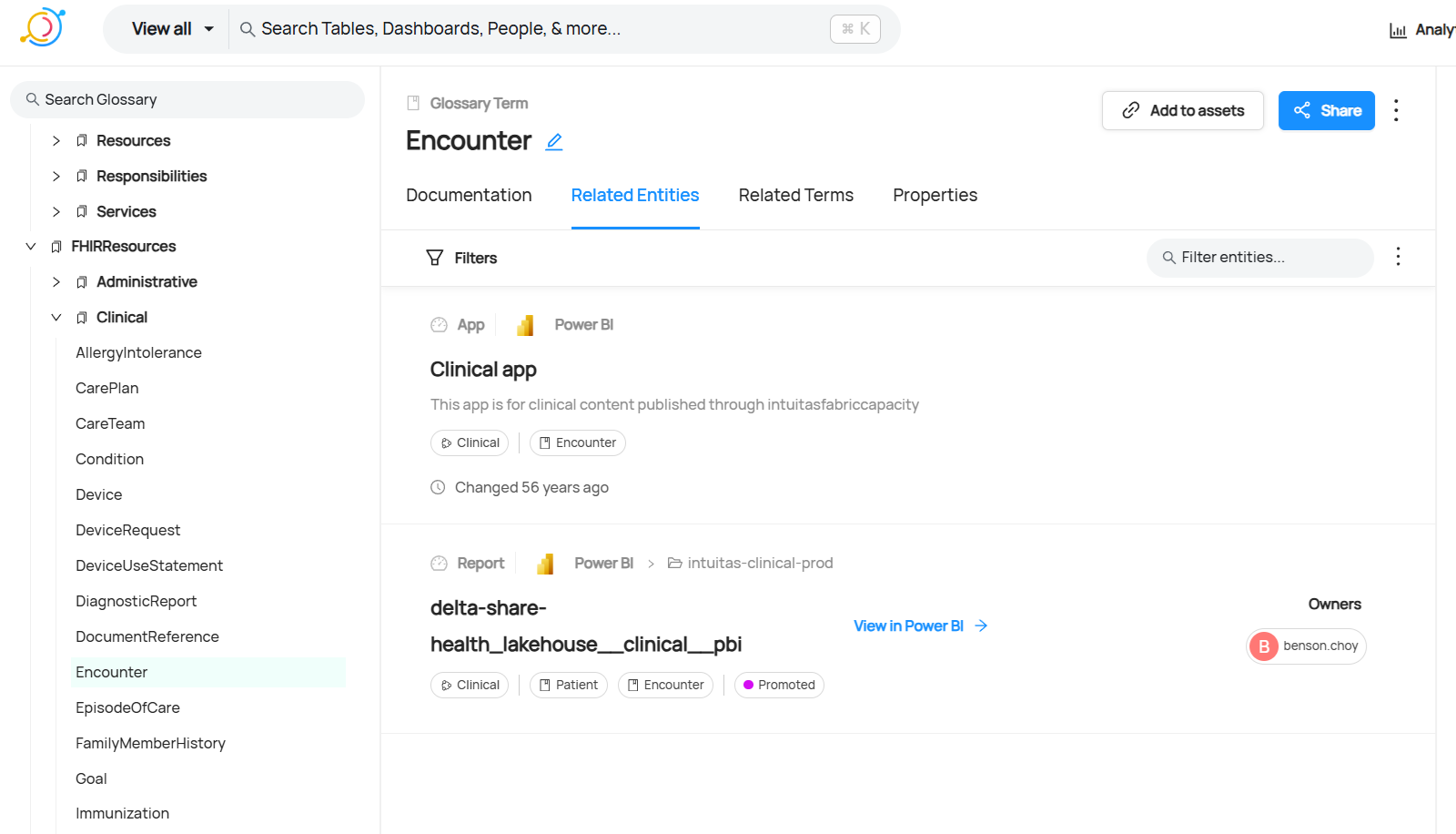

Example of syncing the Glossary term to real-life Data and Products
Example of syncing the Glossary term to real-life Data and Products

Domain data and warehouse models

  • Domain-level data and warehouse models reflect domain-specific scope, requirements and semantics as expressed in models and glossaries.
  • Conformed dimensions may serve as a bridge between domains for common entities.

Data layers and stages

Data and analytics pipelines flow through data layers and stages. Conventions vary across organisations, however the following is an effective approach:

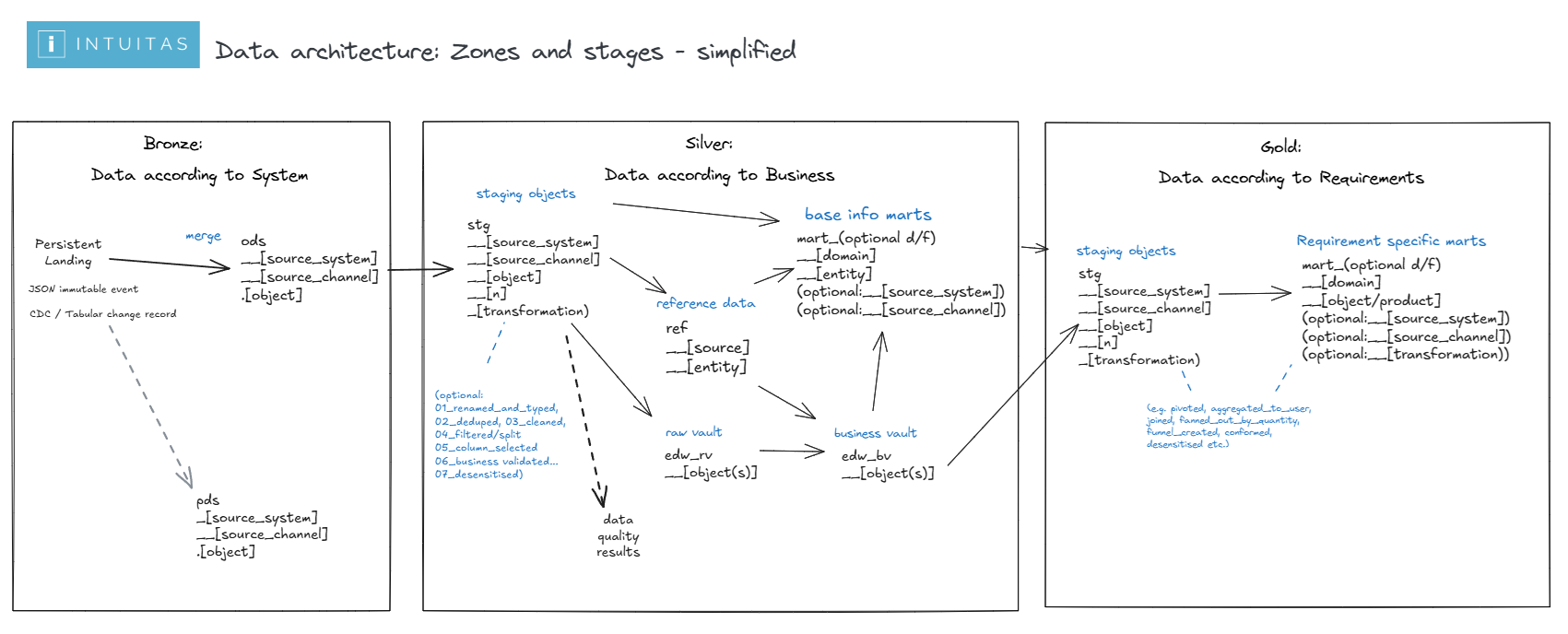

Data layers and stages
Data layers and stages

These map to naming standards and conventions for Catalog, Schemas and dbt.

Metadata layer

Contains engineering and governance of data managed within the platform. The format of this will vary depending on the choice of engineering and governance toolsets and associated metamodels within the solution as well as across the broader enterprise. see Enterprise Metadata Architecture

Bronze layer: Data according to source

The Bronze layer stores raw, immutable data as it is ingested from source systems. The choice of persistence level will depend on requirements.

(Persistent) Landing

  • Initial storage area for raw data from source systems.
  • Stores raw events as JSON or CDC/tabular change records.

  • Data is maintained in a primarily raw format, with the possibility of adding extra fields that might be useful later, such as for identifying duplicates. These fields could include the source file name and the load date.

    • Partitioned by load date (YYYY/MM/DD/HH)
    • Raw data preserved in original format
    • Append-only immitable data.
    • Schema changes tracked but not enforced

ODS (Operational Data Store)

  • Current state of source system data with latest changes applied.
    • Maintains latest version of each record
    • Supports merge operations for change data capture (CDC)
    • Preserves source system relationships

PDS (Persistent Data Store)

  • Historical storage of all changes over time.
    • Append-only for all changes
    • Supports point-in-time analysis
    • Configurable retention periods
    • As these may be available in landing - may be realised through views over landing

Silver layer: Data according to business

The Silver layer focuses on transforming raw data into cleaned, enriched, and validated datasets. These datasets are aligned with broadly accepted business standards and models, making them suitable for a range of downstream requirements.

While some interpretations consider Silver to be primarily source-centric, this blueprint adopts a more flexible approach—allowing for integration and harmonization of assets across multiple data sources.

Silver Staging

Transformations used to shape source data into standardised, conformed, and fit-for-use Reference Data, Data Vault and Base Information Mart objects.

  • Examples of transformations:
    • 01_renamed_and_typed
    • 02_deduped
    • 03_cleaned
    • 04_filtered/split
    • 05_column_selected
    • 06_business_validated
    • 07_desensitised

Data Quality

Data quality test results from checks applied to source data. Further transformation of these results may be applied to shape them into data quality reports.

Reference Data

Reference data, being a common asset and provided for broad consumption should be aligned to standards and downstream needs. Historical versioning requirements of reference data may need to be considered.

Raw Vault

  • Optional Data vault 2.0 aligned raw data warehouse.

Business Vault

  • Optional Business rule applied objects as per Data vault 2.0.

Base Information Marts

The term base is used to distinguish these marts from the domain- or enterprise-specific marts found in the Gold layer. Base marts are designed for broad usability across multiple downstream use cases—for example, a conformed customer dimension.

In some scenarios, it may be beneficial to maintain source-centric base marts alongside a final consolidation (UNION) mart—all conforming to a common logical model. This approach supports decoupled pipelining across multiple sources, improving modularity and maintainability.

These marts may be implemented as Kimball-style dimensional models or denormalized flat tables, depending on performance and reporting requirements. However, dimensional modelling is generally encouraged for its clarity, reusability, and alignment with analytic workloads.

Gold layer: Data according to requirements

The Gold layer focuses on delivering business-ready datasets, including aggregations and reporting structures that directly reflect specific business requirements.

In some instances, Gold assets may be reused across multiple use cases or domains—blurring the line with Silver. While this is not inherently problematic, it is important to consider supportability and scalability to ensure these assets remain trustworthy, maintainable, and accessible over time.

Consider shifting logic left into the Silver layer—such as common aggregations, reusable business rules, or conformed dimensions. This improves consistency, reduces duplication, and enables faster development of Gold-layer assets by building on stronger, more standardized foundations.

Gold Staging

Transformations used to shape source data into business-ready datasets, aligned to business requirements.

  • Examples of Business-specific transformations include:

    • Pivoting
    • Aggregation
    • Joining
    • Conformance
    • Desensitization

  • While dbt best practices use the term 'Intermediates' as reuseable building blocks for marts, this is considered a form of staging and are hence optional under this blueprint. https://docs.getdbt.com/best-practices/how-we-structure/3-intermediate

Business Information Marts (Requirement Specific) The term 'business' here is use to distinguish marts in this layer from marts in the Silver layer. These marts are designed for a defined requirement. e.g. sales fact aggregated by region.

These marts may be Kimball or denormalised flat tables depending on requirements; although Kimball dimensional models are encouraged.

A solution served to the consumption layer is likely to contain a mix of Silver and Gold mart objects. e.g: - silver.dim_customer - gold.fact_sales_aggregated_by_region



Lakehouse Catalog to Storage Mapping

Unity catalog objects (catalogs, schemas, objects) are mapped to:

  • Storage accounts
  • Environments (containers: dev, test, prod)
  • Layers (Level 1 folders: dev.bronze, dev.silver, dev.gold, etc)
  • Stages (Level 2 folders: dev.bronze\landing, dev.bronze\ods, dev.silver\base, dev.silver\staging etc)

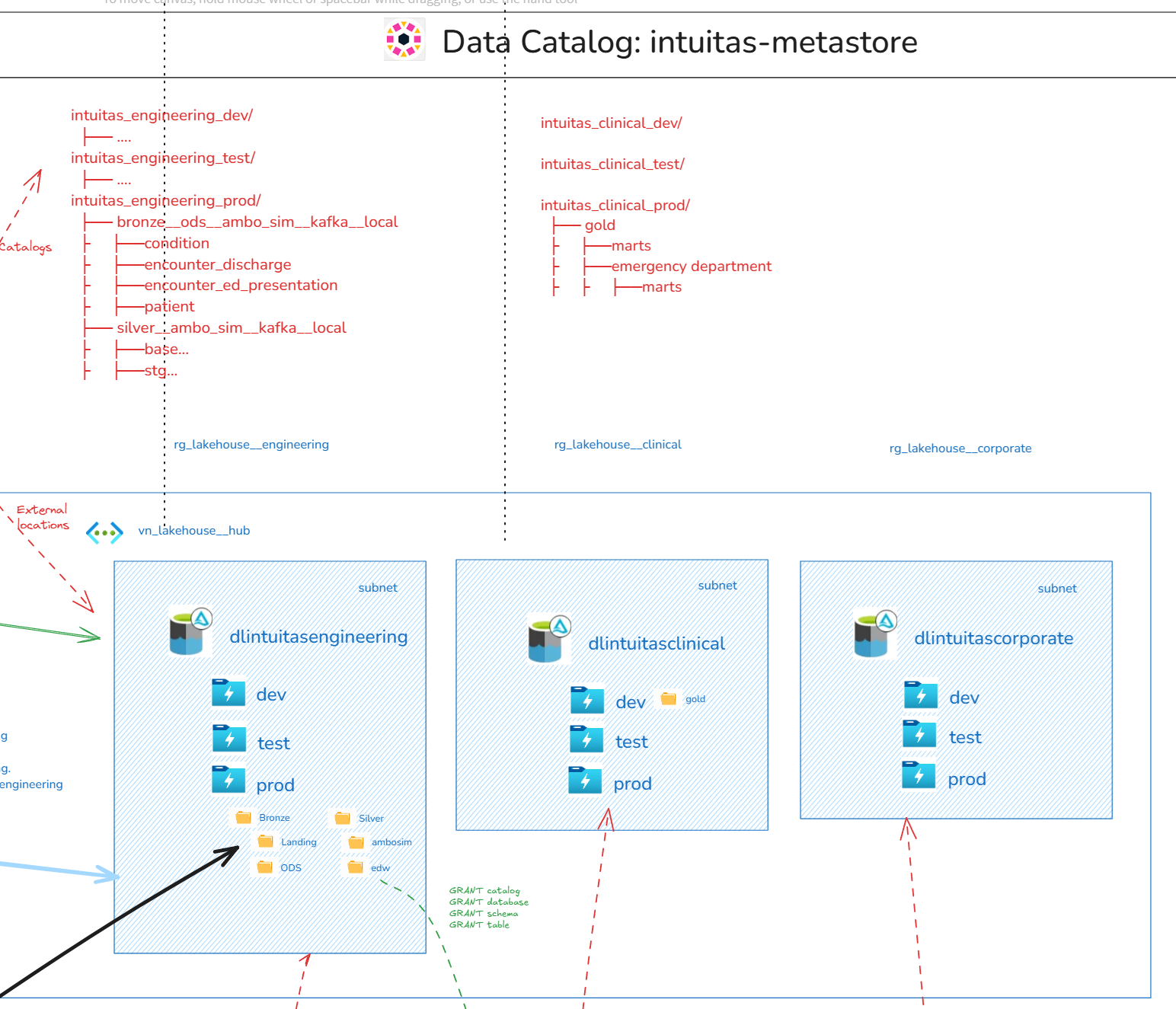

Illustrative example of Catalog to storage mapping in the Intuitas Demo Environment:
Catalog to storage mapping

Data Engineering

Ingestion

Note: These patterns and findings reflect GA functionality only as as at the date of publication and research. Refer to respective product roadmaps and documentation for the latest guidance on functionality.

Ingestion is the process of acquiring data from external sources and landing it in the platform landing layer.

It should be:

  • Scalable, Resilient, Maintainable, Governed
  • Pattern-based, automated and Metadata-driven where possible
  • Batch and stream-based



Example batch ingestion options:

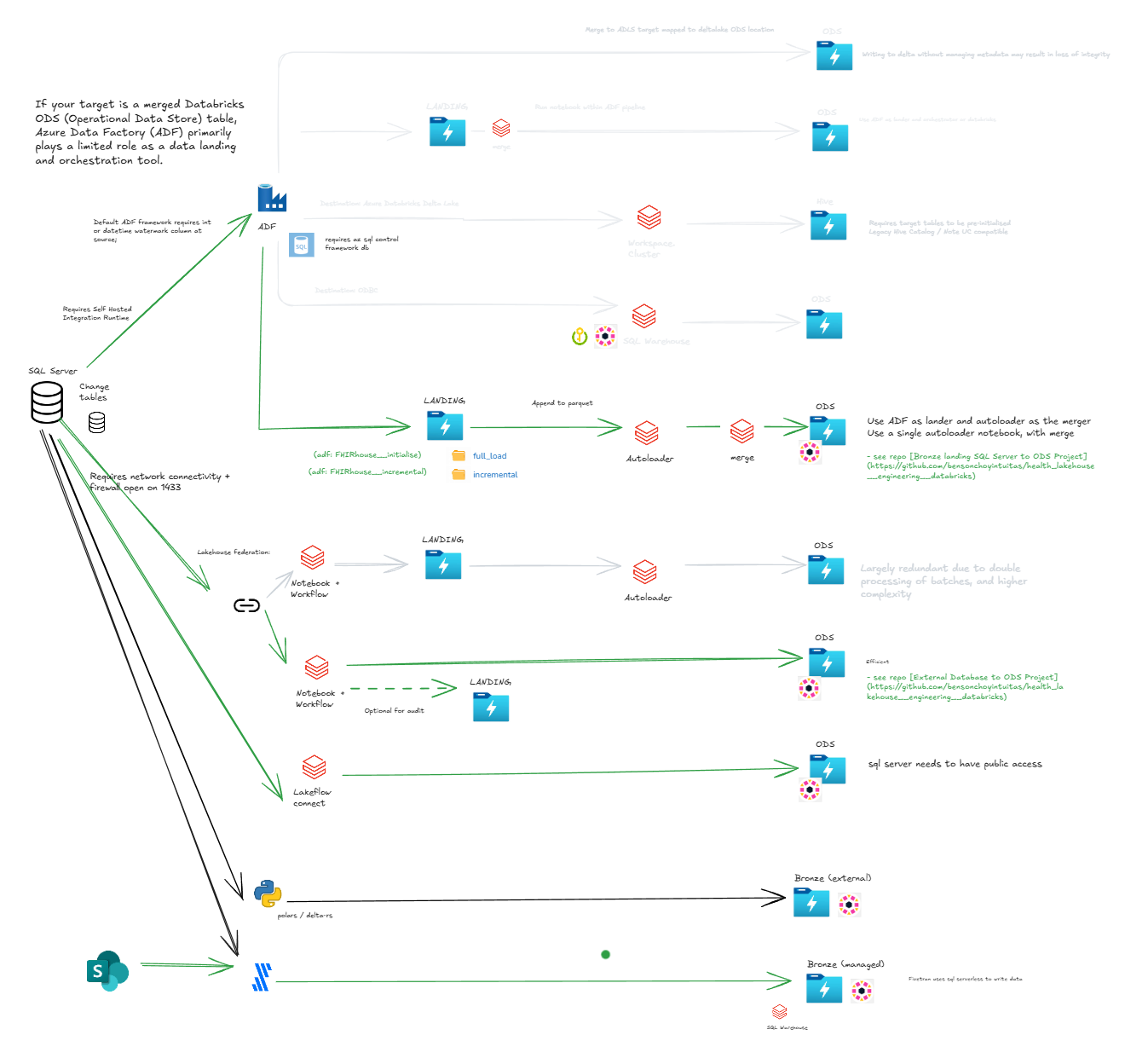

Ingestion patterns

Ingestion patterns and notes:


  • Pattern 1: streaming: kafka -> landing -> databricks autoloader -> ods

  • Pattern 2: batch: source -> adf -> landing -> databricks autoloader merge to ods

  • Pattern 4: batch/streaming: source -> custom python -> deltalake -> external table

  • Pattern 5: databricks lakeflow: source -> lakeflow connect -> ods

    • requires network access to source

  • Pattern 6: sharepoint -> fivetran -> databricks sql warehouse (ods)

Rejected patterns:

  • batch: adf -> deltalake -> ods (does not support unity catalog, requires target tables to be pre-initialised)
  • batch: adf -> databricks sql endpoint -> ods (no linked service for databricks)
  • batch: adf + databricks notebook -> landing, ods, pds (more undesireable coupling of adf and databricks an associated risks)

Transformation

Under development. (Contact us to know more).

Batch and Micro-batch SQL transformation

Streaming SQL transformation

Under development. (Contact us to know more).

Non SQL transformation

Under development. (Contact us to know more).

Data sharing and delivery patterns

Note: These patterns and findings reflect GA functionality only as as at the date of publication and research. Refer to respective product roadmaps and documentation for the latest guidance on functionality.

Data can be shared and delivered to consumers through various channels, each differing in:

  • Cost
  • Functionality
  • Scalability
  • Security
  • Maintainability

The following subsections offer more details about the channels depicted below.

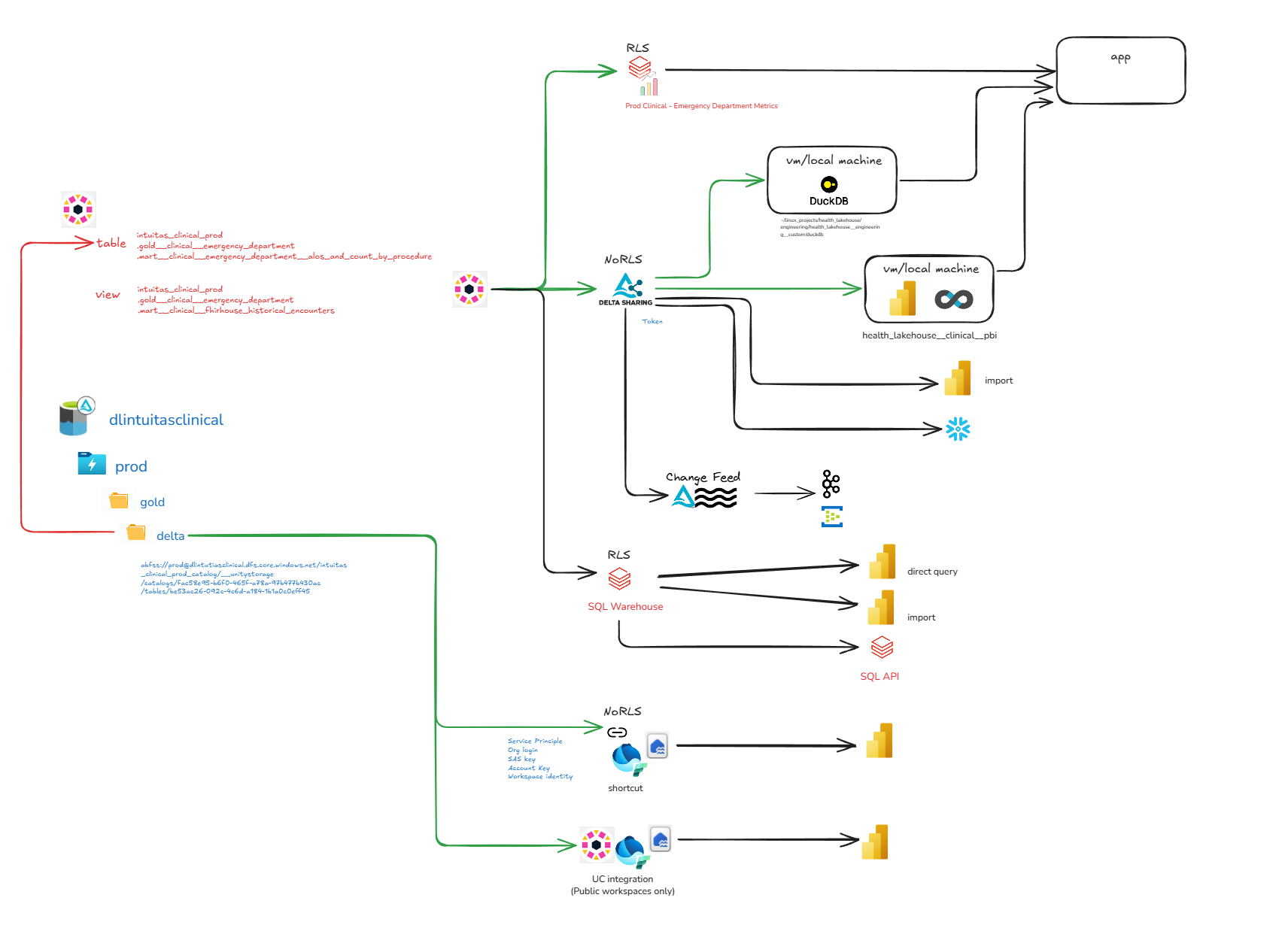

Sharing and delivery visualisation channels
Sharing and delivery visualisation

Pull / direct access

Databricks Delta sharing practices

  • Databricks Delta Sharing allows read-only access directly to data (table, view, change feed) in the lakehouse storage account. This allows for the use of the data in external tools such as BI tools, ETL tools, etc. without the need to use a databricks cluster / sql endpoint. -Permissions: Delta sharing is a feature of Databricks Unity Catalog that requires enablement and authorised user/group permissions for the feature as well as the shared object.
  • Costs: In Delta Sharing, the cost of compute is generally borne by the data consumer, not the data provider. Other costs include storage API calls and data transfer.
  • Naming standards and conventions see naming standards
  • Tightly scope the share as per the principal of least privilege:
    • Share only the necessary data
    • Single purpose, single recipient
    • Granular access control
    • Set an expiry
  • Use audit logging to track access and usage sql SELECT * FROM system.access.audit WHERE action_name LIKE 'deltaSharing%' ORDER BY event_time DESC LIMIT 100;

  • Limitations:

    • No Row Level Security and Masking support (dynamic views required)

  • Reference: Security Best Practices for Delta Sharing

ADLSGen2 Access to Data

  • Provide direct ADLSGen2 access via Managed Identity, SAS or Account Key
  • Note: While technically possible, ADLSGen2 access is not generally recommended for end user consumption as it bypasses the Unity Catalog and associated governance and observabilit controls.
  • Example Scenarios: Direct ADLS file sharing might be preferable in certain cases, even when Delta Sharing is available:
    • Unstructured data
    • Large non-delta file transfer
    • Consumers that don't support Delta Sharing
DuckDB Access to Data (via Unity Catalog)
  • Example: DuckDB is a popular open-source SQL engine that can be used to access data in the lakehouse. It can be run on a local machine or in-process in a Databricks cluster.
  • Costs: DuckDB data access will incur costs of the underlying compute, storage access, data transfer, etc., similar to Delta Sharing.

  • Example Opportunities/Uses:

    • Last mile analysis
    • SQL interface to Delta, Iceberg, Parquet, CSV, etc.
    • dbt compatibility
    • Local execution and storage of queries and data
    • Use as feed visualization tools, e.g., Apache Superset

  • See repo DuckDB

  • Limitations:

    • Unity Catalog not yet supported
    • Delta Kernel not yet supported

SQL Access

  • SQL Access is provided by the Databricks SQL (serverless) endpoint.

API Access

Under development. (Contact us to know more).

  • The Databricks SQL Statement Execution API can be used to execute SQL statements on a SQL warehouse and fetch the result.

References:

  • https://docs.databricks.com/api/workspace/statementexecution
  • https://docs.databricks.com/en/dev-tools/sql-execution-tutorial.html

Snowflake Access

  • Snowflake access is provided by Databricks Delta Sharing.
  • Snowflake access is also provided by Databricks Delta Lake external tables over ADLSGen2 see external tables

References: - tutorial

Microsoft Fabric Access

The following describes options for providing access to Microsoft Fabric / PowerBI

Option 1. Share via Delta Sharing

Steps:

  1. Create a delta share
  2. Use the delta share to import from within PowerBI

Evaluation:

  • Pros:
    • No duplication
    • Centralised control over access policies
    • Compute costs on consumer
    • Avoided SQL Endpoint costs for reads
  • Cons:
    • Row Level Security and Masking support via dynamic views only
    • See limitations. e.g. The data that the Delta Sharing connector loads must fit into the memory of your machine. To ensure this, the connector limits the number of imported rows to the Row Limit that was set earlier.

Option 2. Directlake via ADLSGen2

Steps:

  1. Create a new connection to ADLSGen2 using a provided credential / token / Service principal
  2. Create a lakehouse shortcut in Fabric

Evaluation:

  • Pros:
    • No duplication
    • Potentially better PowerBI performance (untested)
    • Compute costs on consumer
    • No views
  • Cons:
    • Less control over access policies than Delta Sharing (outside of Unity Catalog)
    • Requires granular ADLSGen2 access controls and service principals, and associated management overhead
    • No Row Level Security and Masking support
    • May require OneLake

Option 3. Fabric mirrored unity catalog

Steps:

  1. Within a Fabric Workspace, create a new item Mirrored Azure Databricks Catalog
  2. Enter the Databricks workspace config to create a new connection

Evaluation:

  • Pros:
    • No duplication
    • Convenient access to all Databricks Unity Catalog objects (within credential permissions)
  • Cons:
    • not GA or tested
    • service-principal level identity required to enforce permissions
    • Requires public workspaces

Option 4. PowerBI Import Via SQL Endpoint

Steps:

Databricks documentation

Evaluation:

  • Pros:
    • Potentially the best PowerBI performance and feature completeness
    • Predictable costs on Databricks
  • Cons:
    • Some, but manageable Compute costs on Databricks

Option 5. PowerBI DirectQuery Via SQL Endpoint

Steps:

Databricks documentation

Evaluation:

  • Pros:

    • No duplication
    • Unity Catalog Enforced Row Level Security and Masking

  • Cons:

    • High Compute costs on Databricks on every report interaction
    • Likely deprecated in favour of DirectLake
    • Less feature rich that import mode

Option 6. Replicate into Fabric

  • Pros:

    • Possibly reduced networking costs (depending on workload and networking topology)

  • Cons:

    • Duplicated data
    • Engineering costs and overheads
    • Latency in data updates (SQL Endpoint lag)
    • Less governance control compared to Unity Catalog
    • No Row Level Security and Masking support
    • Requires use of Onelake and associated CU consumption

Push

Under development. (Contact us to know more).

Areas for consideration include:

  • adf
  • databricks
  • lakeflow

Visualisation

Under development. (Contact us to know more).

Areas for consideration include:

  • Powerbi
  • Databricks dashboards
  • Apps
  • Open source visual options


AI/ML

Under development. (Contact us to know more).

Areas for consideration include:

  • MLOps
  • Training
  • Databricks
  • Azure ML


Data governance

This section describes how Enterprise-level governance will be implemented through solutions at the domain level.

Data lifecycle and asset management

Under development. (Contact us to know more).

Areas for consideration include:

  • data contracts and policy
  • data asset tagging

Data access management

Under development. (Contact us to know more).

Areas for consideration include:

  • data access request management
  • data contracts
  • access audit
  • activity audit

Data quality

Under development. (Contact us to know more).

Areas for consideration include:

  • data quality checking and reporting
  • data standards and quality business rule management

Data understandability

Under development. (Contact us to know more).

Areas for consideration include:

  • data lineage
  • data object metadata

Privacy Preservation

Under development. (Contact us to know more).

Areas for consideration include:

  • row level security
  • data masking
  • column level security
  • data anonymisation
  • data de-identification

https://docs.databricks.com/en/tables/row-and-column-filters.html#limitations

"If you want to filter data when you share it using Delta Sharing, you must use dynamic views."

Use dynamic views if you need to apply transformation logic, such as filters and masks, to read-only tables and if it is acceptable for users to refer to the dynamic views using different names.

Row Level Security

Under development. (Contact us to know more).

Areas for consideration include:

  • dynamic views
  • precomputed views
  • costs and overheads of various patterns of sharing of RLS-applied data

Audit

Under development. (Contact us to know more).

Areas for consideration include:

  • audit log queries
Typical observability requirements by role

As a Domain (workspace) Admin

1. Where are there misconfigured catalogs / schemas / objects?
2. Who is sharing what to who and is that permitted (as per access approvals?)
3. Who is accessing data and are they permitted (as per access approvals?)



Infrastructure

Under development. (Contact us to know more).

Environments, Workspaces and Storage

Workspaces, Environments and Storage
Workspaces, Environments and Storage

This diagram illustrates a data lakehouse architecture with the following components and flow:

Data Sources

Data originates from multiple sources such as: - Databases - Kafka or event streaming - APIs or Python scripts - SharePoint (or similar sources)

Enterprise Engineering Layer

  • Centralized enterprise workspaces are managed here with multiple environments. While work can be achieved within a single workspace and lakehouse storage account, decoupling the workspaces and storage accounts allow for more isolated change at the infrastructure level - in line with engineering requirements:
  • Each workspace contains:
  • Data from prod catalogs can be shared to other domains.

Domain-Specific Layer

  • Each domain (e.g., business units or specific applications) operates independently within a single workspace that houses multiple environments.
  • PROD, TEST, and DEV storage containers within a single lakehouse storage account for domain-specific data management.
  • Local Bronze for domain-specific engineering of domain-local data (not managed by enterprise engineering)
  • Data from prod catalogs can be shared to other domains.

Data Catalog

  • A centralized data catalog (unity catalog) serves as a metadata repository for the entire architecture:
  • Enables discovery and governance of data.
  • Optional external catalog storage.

Secrets

Under development. (Contact us to know more).

Areas for consideration include:

  • Management
  • Areas of use
  • Handling practices

Storage

Lakehouse storage

Lakehouse data for all environments and layers, by default, share a single storage account with LRS or GRS redundancy. This can then be modified according to costs, requirements, policies, projected workload and resource limits from both Azure and Databricks.

  • Resource: ADLSGen2
  • Tier: Standard/Premium (depends on workload)
  • Redundancy:
  • Minimum ZRS or GRS for prod
  • Minimum LRS for poc, dev, test and preprod

Generic Blob storage

Generic Blob storage can be used for all non-lakehouse data; or alternatively within the lakehouse storage account in the appropriate container and folder.

  • Resource: ADLSGen2
  • Generic storage account name: sa{organisation_name}{domain_name}{functional_description}
  • Tier: Standard/Premium (depends on workload)
  • Redundancy:
  • Minimum ZRS or GRS for prod
  • Minimum LRS for poc, dev, test and preprod

CICD and Repository

Under development. (Contact us to know more).

Areas for consideration include:

  • Description of git workflows for CICD in terms of:

    • Infrastructure
    • Data engineering
    • Analytics engineering
    • Data science / AIML
    • BI, Reports and other products

Tools

Under development. (Contact us to know more).

Areas for consideration include:

  • Github
  • Azure Devops
  • Databricks Asset Bundles

Repositories

Under development. (Contact us to know more).

Areas for consideration include:

  • Infrastructure IAC repos (Terraform)
  • dbt projects (separate for each domain)
    • potential for enterprise level stitching of lineage
  • Data engineering code (separate for each domain) using Databricks Asset Bundles

Observability

Tools included in reference architecture:

  • dbt observability - Elementary
  • Databricks observability - Databricks monitoring dashboards
  • ADF - Native adf monitoring

dbt observability - Elementary

Elementary is a dbt observability tool available in both Open Source and Cloud Service forms. For more information, visit: Elementary Documentation

dbt warehouse observability

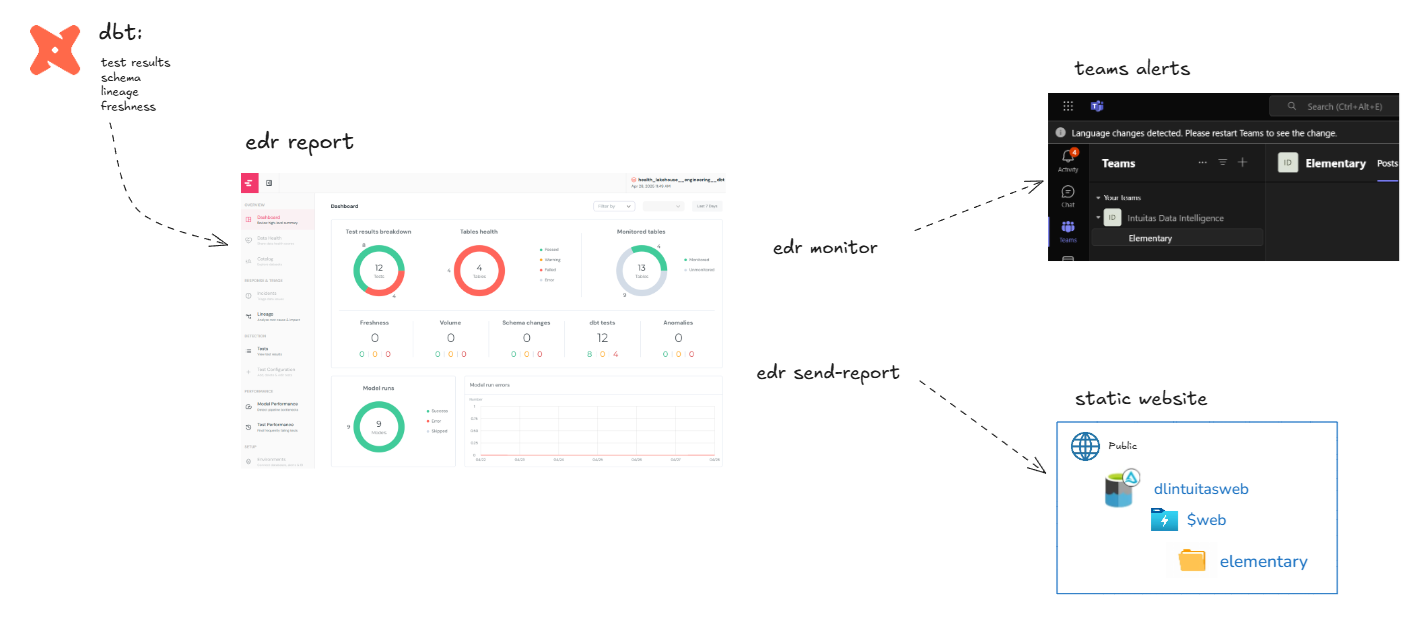

Observability Diagram

Example observability dashboard for Intuitas Engineering Domain

Elementary acts as a health monitor and quality checker for dbt projects by automatically tracking, alerting, and reporting on:

  • Data freshness: Ensures your data is up to date.
  • Volume anomalies: Detects unexpected changes in row counts.
  • Schema changes: Monitors additions, deletions, or modifications of columns.
  • Test results: Checks if your dbt tests are passing or failing.
  • Custom metrics: Allows you to define your own checks.

It leverages dbt artifacts (such as run results and sources) to send alerts to Slack, email, or other tools. Additionally, it can automatically generate reports after dbt runs, enabling early detection of issues without manual intervention.

Networking

Areas for consideration include:

  • By default - all resources reside within the same VNet with private endpoints.
  • Service endpoints and policies can be enabled - however consider impacts on private endpoints.

Orchestration

Under development. (Contact us to know more).

Tools included in reference architecture

  • Azure Data Factory (if needed)
  • Databricks Workflows (for both databricks and dbt)

Security

Under development. (Contact us to know more).

Tools included in reference architecture

  • Azure Entra
  • Azure Key Vault
  • Unity Catalog
    • System access reports
